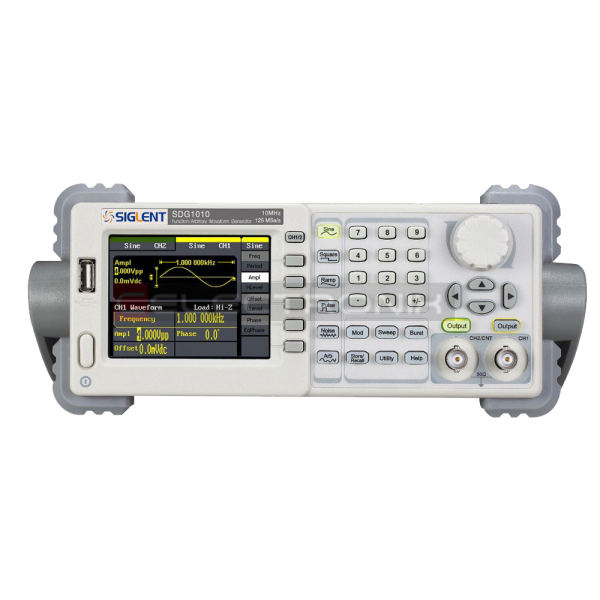

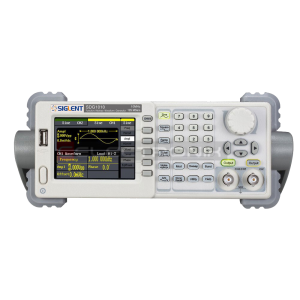

Siglent SDG1025 Arbitrary Function Generator
The SDG1025 features maximum output frequency of 25 MHz and is
capable of generating several different wave types that can be output
using the dual-channels integrated into the device.
Siglent’s SDG1000 range of function generators also come with a
full-colour built in screen that can be used to accurately track
waveforms generated and make adjustments as necessary using the large

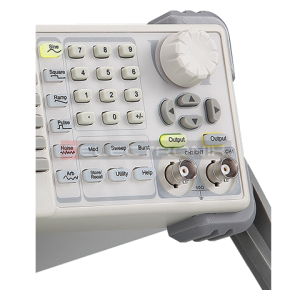

selection of function buttons to the right of the screen. The full
colour of the screen makes it easy to track two waveforms being output
at the same time as different waves are assigned different colours.
The sampling rate of the SDG1025 is 125msa/s, it has wave length of
16kpts, frequency resolution 1µHz and vertical resolution of 14 bits. It
also includes modulation functions for AM, FM, PM, DSB-AM, FSK, ASK,
PWM, Sweep and Burst as well as a frequency counter between 100mHz and
200mHz.
The SDG1025 can be used to inject the following wave types:
- Sine Wave - 1µHz – 25MHz
- Square Wave - 1µHz – 25MHz
- Pulse - 500µHz – 5MHZ
- Ramp – 1µHz – 300KHz
- Gaussian White Noise – 25MHz bandwidth (-3db)
- Arbitrary Wave - 1µHz – 5Mhz
This product also includes modulation functions (AM, FM, PM, DSB-AM,
FSK, ASK, PWM, Sweep and Burst) and a frequency counter between 100mHz
and 200Mhz.
Specification:
Maximum output frequency: 25MHz
Output channels: 2
Sampling rate: 125 MSa/s
Wave length: 16 kpts
Frequency resolution: 1 μHz
Vertical resolution: 14 bits
Waveform: Sine, Square, Ramp, Pulse, Gaussian white noise, 48 types of built-in arbitrary waveforms
Modulation function: AM, FM, PM, DSB-AM, FSK, ASK, PWM, Sweep, Burst
Other functions: Frequency counter: 100 mHz ~ 200 MHz
Standard configuration; USB Host & Device
Optional port: USB-GPIB adapter
Size: 229mm×105mm×281mm
Accessoires Included:
Siglent SDG1025 Arbitrary Function Generator
User Manual
Guarantee Card
Power Cord
USB Cable
Quick Start Guide
