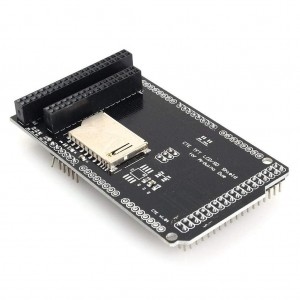

Module d'adaption d'afficheur LCD/TFT pour Arduino Due avec carte SD

Description: 1. TFT LCD in a much faster speed using 84Mhz Ardiuno DUE 2. The shield route all the LCD data pins to port PC1-PC8 and PC12-19, control pins to PD0-PD3,this design can acheive high speed data transfer (three cycles per write strobe to the LCD) to maximize LCD display speed 3. The SPI interface (for SD or flash control) is route to the ISP header of for Arduino DUE,so that high speed SPI transfer with DMA can be achieved The shield is compatible with for Arduino DUE and the following LCD: 2.2" TFT LCD module (220x176) 2.8" TFT LCD module (320x240) 3.2" TFT LCD module with font IC (320x240) 3.2" High resolution TFT LCD module with font IC (480x320) 3.5" TFT LCD module with Font IC (480x320) (Full viewing angle IPS panel) 4.0" TFT LCD module with Font IC (480x320) 4.3" TFT LCD module with Font IC (480x272) 5.0" TFT LCD module with Font IC (800x480) 7.0" TFT LCD module with Font IC (800x480) Features: 1. Drive TFT LCD on for Arduino DUE by just plugging into for Arduino DUE main board, no flying wires 2. Compatible with 40-pin version LCD, which is commonly used in TFT DUE shield 3. Also comptabile with 32-pin version LCD, which is commonly used in STM32 development board 4. On board SD card slot with adjustable CS selection 5. On board SPI flash footprint with adjustable CS selection,for upgrade include font IC to draw text to the LCD and also support SPI Flash library 6. LCD power 3.3V and 5V selectable through solder jumpers 7. LCD backlight (LEDA+) 3.3V, 5V or PWM selectable through solder jumpers 8. Pins are routed to reduce CPU cycles, display speed is faster Package included: 1 X TFT/SD shield expansion board for Arduino DUE LCD module
