Waveshare Open32F3-D Standard, STM32F3 Development Board

Référence: 59-04659

102,300 TND
TTC


Quantité
Derniers articles en stock



Garanties sécurité



Livraison gratuite à partir de 300dt



Ouvert tous les jours de 8:30h à 18h

Weight: 0.169 kg

  1. Open32F3-D mother board x 1
  2. 4-pin wire x 2
  3. 2-pin wire x 2
  4. USB power cable x 1
  5. Software CD x 1

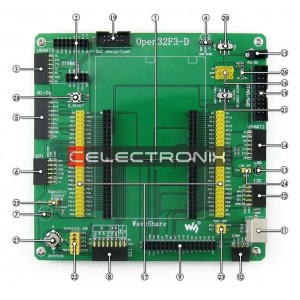

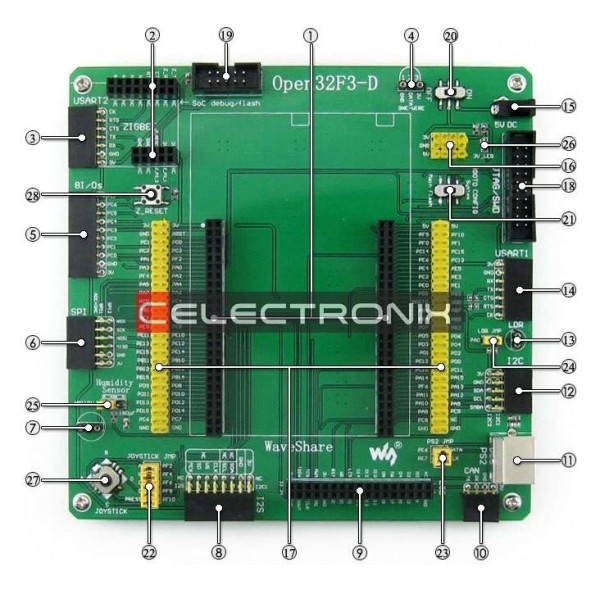

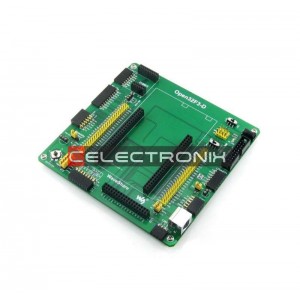

Open32F3-D is an STM32 development board designed for the ST official tool STM32F3DISCOVERY, which features the STM32F303VCT6 microcontroller onboard.

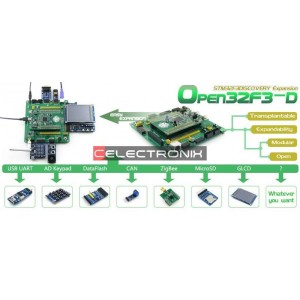

The Open32F3-D supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32F3 series microcontrollers.

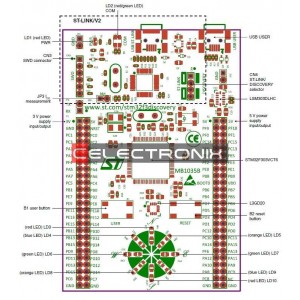

  • STM32F303VCT6 microcontroller featuring 256 KB Flash, 48 KB RAM in an LQFP100 package
  • On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
  • Board power supply: through USB bus or from an external 3 V or 5 V supply voltage
  • External application power supply: 3 V and 5 V
  • L3GD20, ST MEMs motion sensor, 3-axis digital output gyroscope
  • LSM303DLHC, ST MEMs system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor
  • Ten LEDs:
    • LD1 (red) for 3.3 V power on
    • LD2 (red/green) for USB communication
    • Eight user LEDS, LD3/10 (red), LD4/9 (blue), LD5/8 (orange) and LD6/7 (green)
  • Two pushbuttons (user and reset)
  • USB USER with Mini-B connector
  • Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
