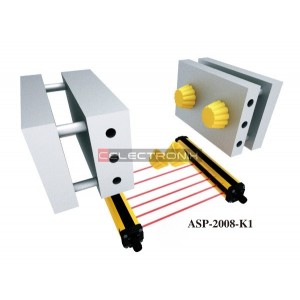

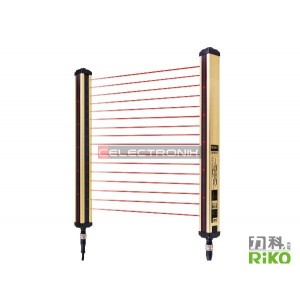

Barrière immatérielle ASP-2008-K1 Riko
Référence: 59-04831
• Durable aluminum extrusion structure.
• Dip setting: CW. (installing forwards)/CCW. (installing reverse side) complied with machinery wiring.
• NP model: NPN or PNP, L.on or D.on selectable.
Garanties sécurité
Livraison gratuite à partir de 300dt
Ouvert tous les jours de 8:30h à 18h

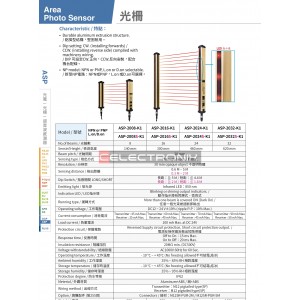

| Model / Type | NPN or PNP L.on / D.on |
|---|---|
| No. of Beams | 8 |
| Sensinf Height | 140 mm |
| Beam pitch | 20 mm |
| Sensing distance | Through beam |
| Resolution | 30 mm opaque object |
| Sensing distance | 0.6 M ~ 5M |
| Dip Switch / LONG / SHORT | LONG：≧ 5 M / SHORT：≦ 4.4 M |
| Emitting light | Infrared LED : 850 nm |
| Indication LED | Blinking or shining output indicators. |
| Running type | More than one beam is covered ON (Dark On) |
| Operating voltage | DC12 ~ 24 V±10% (ripple P-P：10% Max.) |
| Current consumption | Transmitter : 45 mA Max. Receiver : 35 mA Max. |
| Load current | 100 mA Max. at DC 24V |
| Protection circuit | Reversed Supply circuit protection, Short circuit protection output. |
| Response time / | Off to On：15 ms Max. On to Off：20 ms Max. |
| Insulation resistance | 20MΩ min. (DC500V) |
| Voltage withstandability | AC1000V 60Hz for 60 Sec. |
| Opera tetemperature | - 10 ℃ ~ + 45℃ No freezing allowed |
| Operating temperature | 35% ~ 85% RH |
| Storage temperature | - 10 ℃ ~ + 45℃ No freezing allowed |
| Storage humidity | 35% ~ 95% RH |
| Protection degree | IP62 |
| Casing material | Aluminum+ABS |
| Wiring method | Transmitter : M12 pigtailed type (5P) Receiver : M12 piqtailed type (5P) |
| Option | Connectors : M125R-PUR-2M / M125R-PUR-5M |
| Weight | 320g |
59-04831
Références spécifiques
• Durable aluminum extrusion structure.
• Dip setting: CW. (installing forwards)/CCW. (installing reverse side) complied with machinery wiring.
• NP model: NPN or PNP, L.on or D.on selectable.
